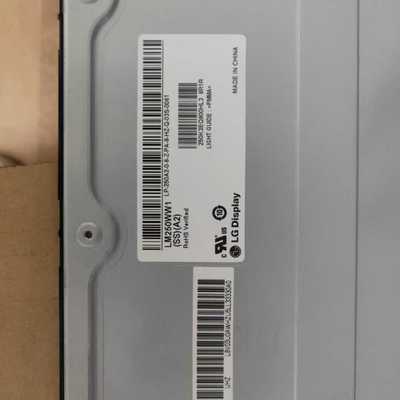

LG 25Inch Widescreen LCD Computer Monitors LM250WW1-SSA2 92Pin Desktop monitor Digital signage lcd

LG Display Co., Ltd. (hereafter called LG Display) LM250WW1-SSA2 (Alias: LM250WW1 (SS)(A2)) is a 25.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by einklcd in the following: sRGB, 3-side boderless, WLED Backlight, Reverse I/F, Matte , 3-side Borderless. Based on its features, einklcd recommend that this model be applied to Desktop Monitor, Digital Signage etc. According to the information stored in einklcd this model mass production on Q2, 2016, Now this model is discontinued. We inputted this model's specification on Aug 13 2018 for the first time, and the latest update on Sep 2 2024. If you want to embed LM250WW1-SSA2 LCM in your future product, einklcd strongly recommend that you should contact with LG Display or it's distributor to learn lateast production and specification detail. The LM250WW1-SSA2 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand:LG

Display Model P/N: LM250WW1-SSA2
Diagonal Size: 25.0"

Panel Type: a-Si TFT-LCD, LCM
Resolution 2560(RGB)×1080, CSHD 111PPI Pixel

Format RGB Vertical Stripe
Active Area 585.216(W)×246.888(H) mm

Bezel Opening-
Outline Size 602.2(W)×271.2(H) ×17.4(D) mm

Surface Antiglare, Hard coating (3H)
Brightness:250 cd/m² (Typ.)

Contrast Ratio: 1000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Display Mode: IPS, Normally Black, Transmissive
IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
Best View on Symmetry

Response Time:14 (Typ.)(G to G)
Display Colors 16.7M 99% sRGB

Lamp Type: 15S4P WLED , 30K hours , Without Driver
Frequency:75Hz

Touch Screen: Without
Panel Weight: 2.45/2.58Kgs (Typ./Max.)

Application: Desktop Monitor Digital Signage
Signal Interface LVDS (4 ch, 8-bit) , 92 pins Connector
Input Voltage:10.0V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ;

Storage Temp.: -20 ~ 60 °C
