TianMa 3.5 Inch Industrial LCD Display with 320×240 Pixels Resolution and 420 cd/m² Brightness for Digital Video Camera

Marchio:	PVI
Numero di modello:	PD064VT4
MOQ:	10 pezzi
prezzo:	negotiable
Condizioni di pagamento:	T/T,W,Western Union,MoneyGram
Capacità di fornitura:	3000pcs a settimana

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Cina

Certificazione:

Rohs,CE,FCC

Qualità:

Nuovo originale

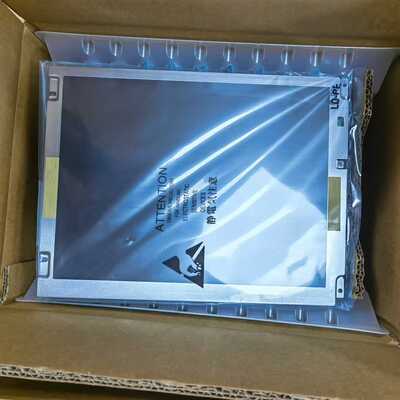

Pacchetto:

Imballo industriale originale

Risoluzione:

320*240pixels

Stile:

LCD 54P

Luminosità:

420 CCDM2

Colore:

16,7 milioni

Rapporto di contrasto:

500: 1

Imballaggi particolari:

Imballaggio industriale

Evidenziare:

320×240 Pixels Resolution Industrial LCD Display

420 cd/m² Brightness TFT-LCD Panel

3.5 Inch Diagonal LCM

Descrizione del prodotto

TianMa 3.5-Inch Industrial LCD Display TM035KBH02-09

High-performance 3.5-inch industrial TFT-LCD display with 320*240 QVGA resolution and 420 cd/m² brightness, specifically designed for digital video cameras and industrial applications.

Product Overview

The Tianma TM035KBH02-09 is a 3.5-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system and 4-wire resistive touchscreen. This industrial-grade display operates within a wide temperature range of -20°C to 60°C and features a compact design suitable for various embedded applications.

Key Specifications

Brand	TIANMA
Model Number	TM035KBH02-09
Diagonal Size	3.5 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	320(RGB)*240 (QVGA) - 115 PPI
Active Area	70.08mm * 52.56mm
Brightness	420 cd/m² (Typical)
Contrast Ratio	500:1 (Typical)
Viewing Direction	6 o'clock
Response Time	25ms (Typical)
Viewing Angle	70/70/60/70 (CR≥10)
Operating Mode	TN, Normally White, Transmissive
Color Support	16.7M colors (50% NTSC)
Light Source	WLED [6S1P], 20,000 hours
Touch Panel	4-wire Resistive Touch
Interface	Digital RGB (8/24-bit) + SPI, CCIR601/656, 54-pin FPC
Power Supply	3.3V (Typical)
Weight	40.0g (Typical)

Physical Dimensions

Outline Dimensions: 76.9mm * 63.9mm * 4.2mm

Bezel Opening: 72.08mm * 54.56mm

Surface Treatment: Antiglare with Hard coating (3H)

Environmental Specifications

Operating Temperature: -20°C to 60°C

Storage Temperature: -30°C to 70°C

Additional Features

Frame Rate: 60Hz
Built-in NV3035C driver IC
3-in-1 FPC configuration
Down side FPC (37.00mm length)
Matte surface finish

Application Areas

This display model is recommended for industrial applications, digital still cameras, and digital video cameras.

Note: Production status information is for reference only. For the latest production and specification details, please contact TIANMA or their authorized distributors.
